By industry

Start from the product you make,
and find the line that fits it

Tell us your end product and we work back to the material, target fineness and the whole line — every industry has a proven route that spares you the trial and error. Prefer to browse by machine? See the core grinding mill.

The product you make

Building & construction

Gypsum, calcite and limestone fillers for plasterboard, mortar, putty, ceiling panels and floor tiles — localise supply and make your building-material feedstock close to where you use it.

Recommended line Gypsum / calcite building-material line

150–800 mesh Target fineness

0.2–20 t/h Line capacity

SX-100 Typical main mill

Gypsum · calcite Typical material

Crush → Ultrafine grind → Classify → Dust collect → Convey → Pack

Get this line proposal → See related equipment

The product you make

Plastics, rubber & cable

Ultrafine ground calcium carbonate (GCC) for masterbatch, PVC / PPR pipe, tyres, footwear and wire & cable — the finer and more consistent the filler, the lower the cost and the more controllable the product.

Recommended line GCC calcium-carbonate line

≤ 3000 mesh Target fineness

D97 ≤ 5 µm Achievable cut

SX-100 Typical main mill

Calcite · limestone Typical material

Hammer crush → Ultrafine grind → Precision classify → Dust collect → Pneumatic convey → Pack

Get this line proposal → See related equipment

$Minerals, ceramics & refractory$ 03

The product you make

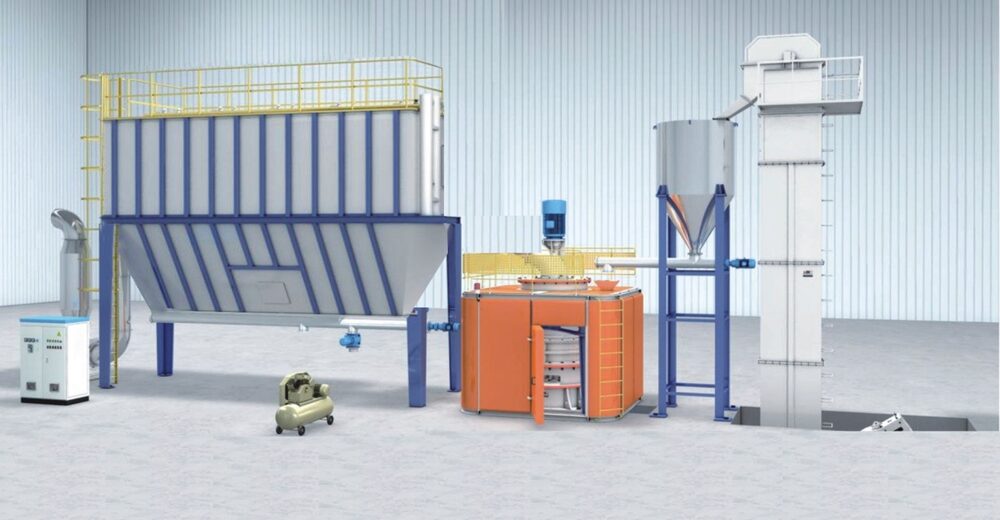

Minerals, ceramics & refractory

Kaolin, bentonite, dolomite and 100+ non-metallic minerals below Mohs 6, processed to ultrafine powder for the ceramics, chemical and refractory industries.

Recommended line Non-metallic mineral processing line

100+ Brittle minerals covered

≤ 3000 mesh Target fineness

SX-80 Typical main mill

Ceramics · refractory Downstream

Crush → Ultrafine grind → Classify → Pneumatic convey → Pack

Get this line proposal → See related equipment

The product you make

Coatings, ink & paper

Fine calcite, talc and kaolin as fillers and extenders for paint, ink and paper — stable fineness and brightness feed straight through to opacity and finish.

Recommended line Calcite / talc fine-powder line

600–3000 mesh Target fineness

SX-100 Typical main mill

Calcite · talc · kaolin Typical material

Filler / extender Powder role

Crush → Ultrafine grind → Precision classify → Dust collect → Pack

Get this line proposal → See related equipment

The product you make

Chemicals & home care

Barite, talc and other non-metallic minerals for chemical feedstock, cosmetics and home-care products — applications where purity and fineness consistency matter most.

Recommended line Barite / talc powder line

325–2500 mesh Target fineness

SX-80 Typical main mill

Barite · talc Typical material

Purity · consistency Focus

Crush → Grind → Classify → Dust collect → Convey → Pack

Get this line proposal → See related equipment

The product you make

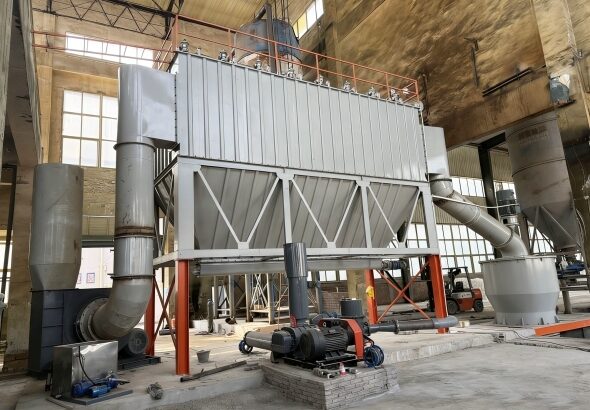

Battery & new-energy materials

Fine and ultrafine processing for energy-storage and electrode-grade powders — a fast-growing direction. Send us your material spec and our engineers assess fit first, then recommend a feed test before anything else.

Capability fit Engineer assessment + feed test

Assessment Capability-fit status

Feed test Recommended path

SX-80 Candidate main mill

Storage · electrode Downstream

Feed assessment → Trial run & sample → Test report → Line proposal

Get this line proposal → See related equipment
